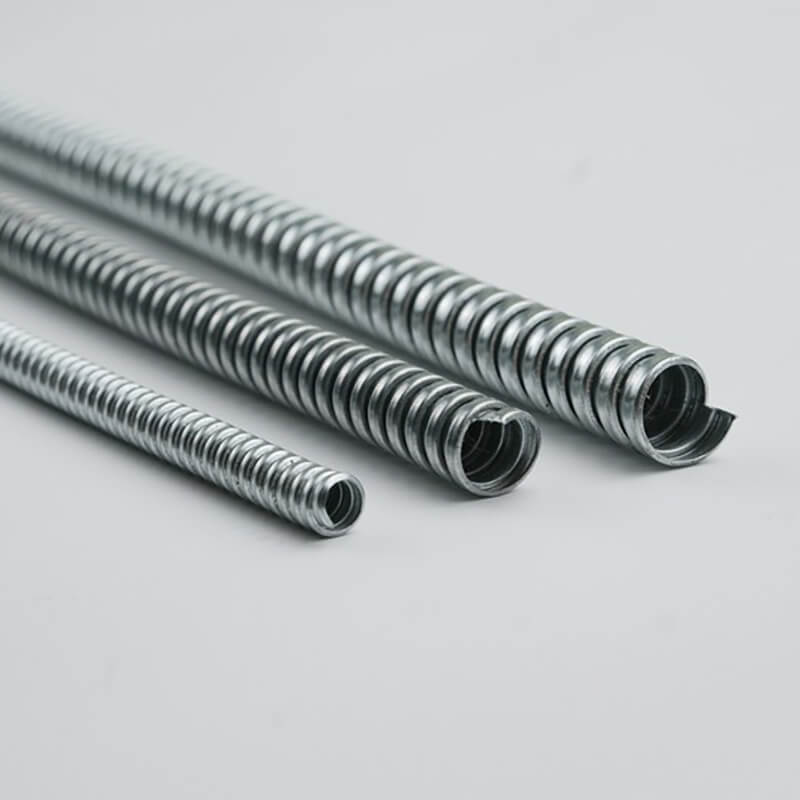

The galvanized steel flexible metal conduit is made with galvanized steel material and has a spiral construction that enables it to snake through walls and other structures. The conduit protects electrical wiring in commercial and industrial buildings. It has good softness, corrosion resistance, abrasion resistance and tensile property. Our material is RoHS approved and suitable for most environments and temperatures.
Material: Galvanized Steel

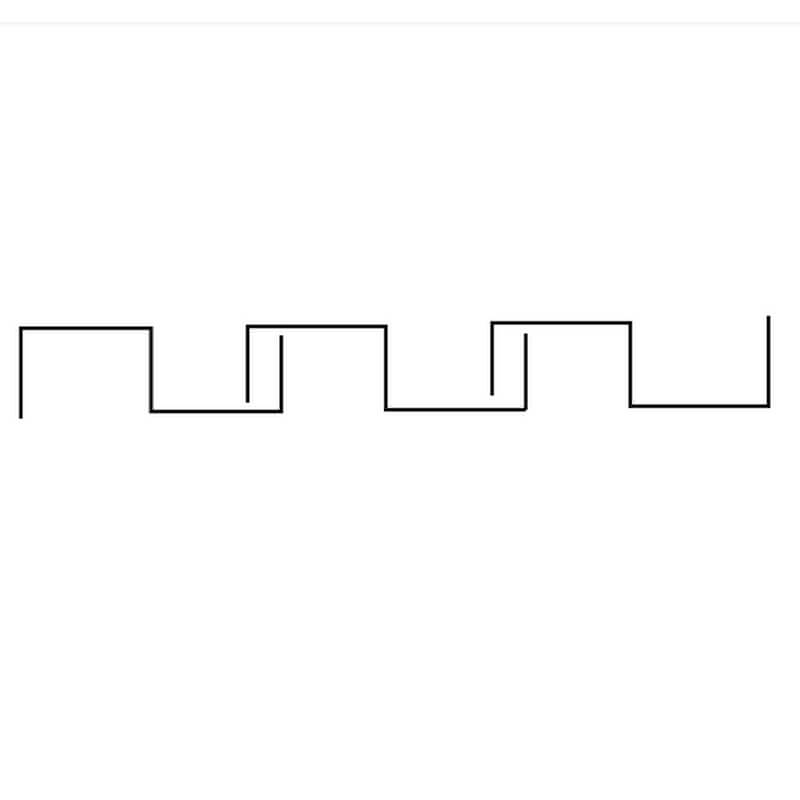

Profile: Square locked
Inside diameter: customize from 2mm-the size you want
Length: customize.
We can provide the corresponding connectors or fittings.
Electrical protection in buildings, Railway Systems, Marines, Elevators and etc.
| Series Number | ID (mm) | OD (mm) | Length (m) |
| GSSL 003 | 3 | 5 | 100m or customize |
| GSSL 004 | 4 | 6 | 100m or customize |
| GSSL 005 | 5 | 7 | 100m or customize |
| GSSL 006 | 6 | 8 | 100m or customize |
| GSSL 007 | 7 | 9 | 100m or customize |
| GSSL 008 | 8 | 10 | 100m or customize |
| GSSL 009 | 9 | 11 | 100m or customize |
| GSSL 010 | 10 | 12.7 | 100m or customize |
| GSSL 012 | 12 | 14.5 | 100m or customize |
| GSSL 013 | 13 | 15.5 | 100m or customize |
| GSSL 016 | 16 | 18.7 | 100m or customize |
| GSSL 020 | 20 | 23.2 | 100m or customize |
| GSSL 025 | 25 | 28.7 | 100m or customize |
| GSSL 032 | 32 | 36 | 100m or customize |
| GSSL 038 | 38 | 44 | 100m or customize |
| GSSL 064 | 64 | 73 | 100m or customize |
| GSSL 075 | 75 | 85 | 100m or customize |
| GSSL 100 | 100 | 115 | 100m or customize |
